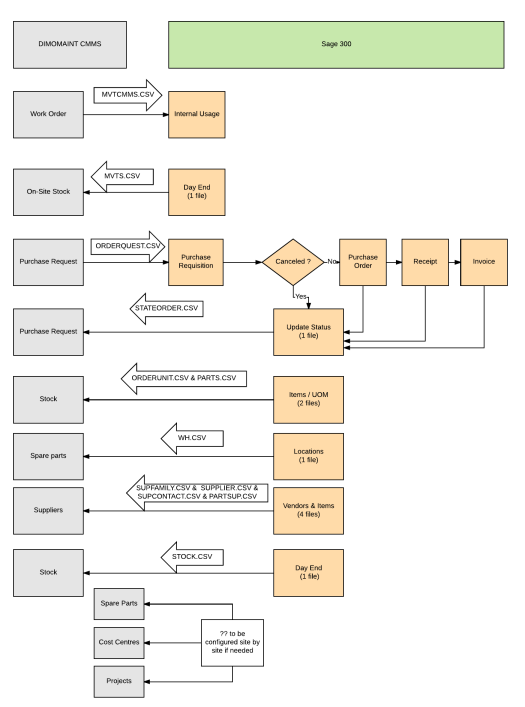

Diagram of Sage 300 : DIMO Maint integration

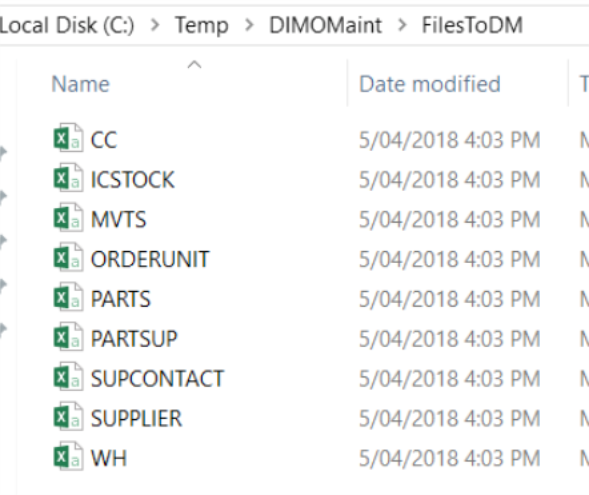

Exports from Sage 300 to DIMOMAINT

File name

Description

cc.csv

Cost Centre

ICSTOCK.csv

I/C Location Details – Stock on hand

MVTS.csv

I/C Stock Movements (not included in bulk export)

ORDERUNIT.csv

I/C Unit of measures

PARTS.csv

I/C Items

PARTSUP.csv

I/C Vendor Details

SUPCONTACT.csv

AP Vendor contacts

SUPPLIER.csv

AP Vendors

WH.csv

I/C Locations (Excludes logical locations in Sage 300)

STATEORDER.csv

PO Purchase Request/Purchase Order status, only created/updated when PO requisitions and P/O Orders are updated in Sage 300.

State: 1 = In progress, 2 = complete, 3 = cancelled
